 Spindle Shaper |
 |
|
 |

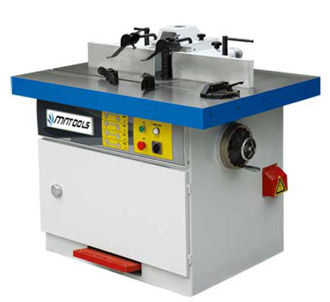

| MTMX5118 |
|

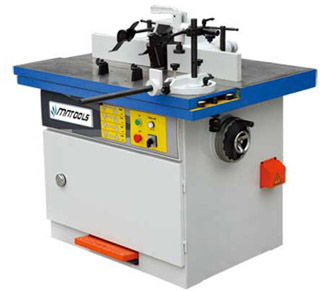

MTMX5118H |
 |
|
 |

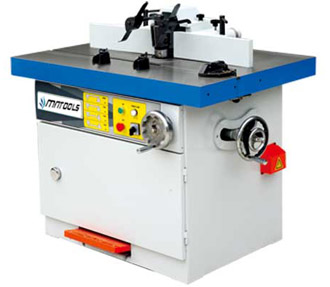

| MTMXQ5118 |
|

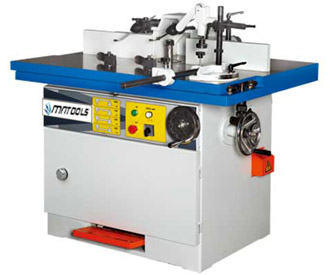

MTMXQ5118H |
|
| |
Model |
MTMX5118 |
MTMX5118H |
MTMXQ5118 |
MTMXQ5118H |
Spindle Dia. |
19mm(3/4"), 25.4mm(1"), 30mm(1-1/4") |
Spindle Speed |
3000/ 4500/ 7500/ 10000RPM |
Tape of spindle |
7:24 |
7:24 |
7:24 |
7:24 |
Spindle motor |
4kw |
4kw |
4kw |
4kw |
Spindle stroke |
130mm |
130mm |
130mm |
130mm |
Tilting angle |
|
|
-5° ~90° ~+45° |
-5° ~90° ~+45° |
Max.table insert Dia. |
φ250mm |
φ250mm |
φ250mm |
φ250mm |
Table size(LxW) |
1150x850mm |
1150x850mm |
1150x850mm |
1150x850mm |
Sliding table size |
|
1150x300mm |
|
1150x300mm |
Sliding table travel |
|
1070mm |
|
1070mm |
Net weight |
880kgs |
940kgs |
880kgs |
940kgs |
Overall size |
1150x850x1130mm |
1150x850x1130mm |
1150x1015x1130mm |
1150x1015x1130mm |
|
|
